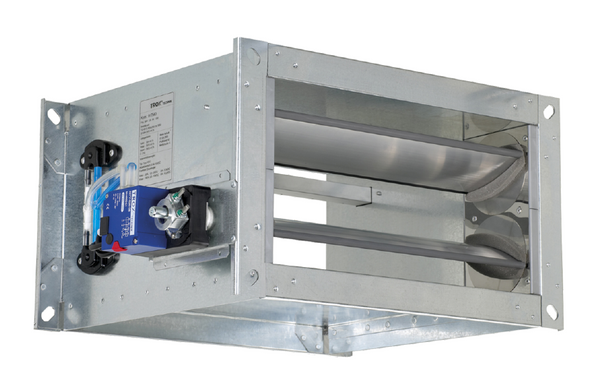

VAV terminal unit, variant TVT

Easyregler-Compactregler_img_01_2020_01_DE__4_psd.psd.link

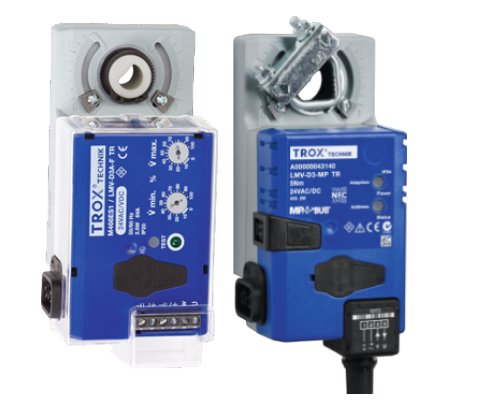

Easy controller, Compact controller

Easy controller, Compact controller

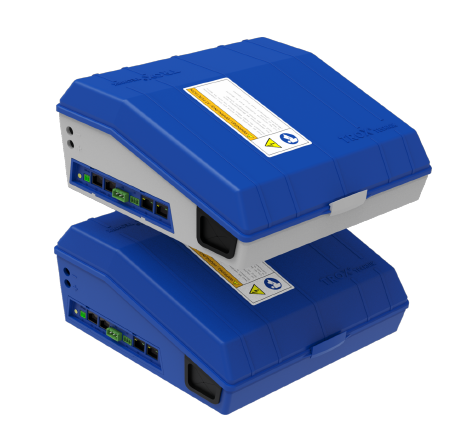

TU-ELAB-Regler_img_01_2020_01_DE__7_psd.psd.link

TROX UNIVERSAL controller,

TROX LABCONTROL controller

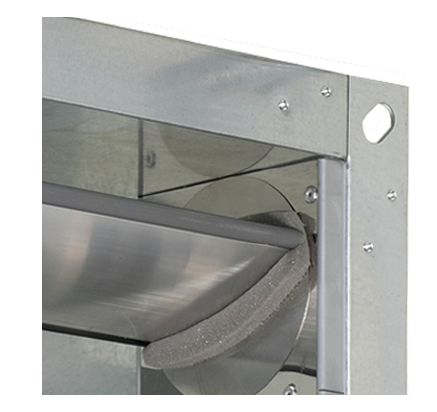

With sealing elements for low-leakage shut-off

With sealing elements for low-leakage shut-off

TVT_img_02psd.psd.link

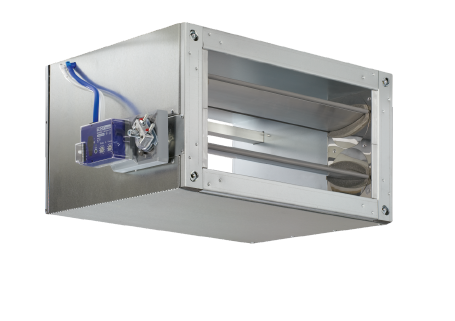

VAV terminal unit, variant TVT-D

Construction with acoustic cladding

00073144_0ai.ai.link
Tested to VDI 6022

Tested to VDI 6022

Easyregler-Compactregler_img_01_2020_01_DE__4_psd.psd.link
TU-ELAB-Regler_img_01_2020_01_DE__7_psd.psd.link
TVT_img_02psd.psd.link
00073144_0ai.ai.link

TVT

For normal and high volume flow rate ranges and low-leakage shut-off




Rectangular air terminal units for standard applications in supply air or extract air systems with variable volume flow rates, suitable for low-leakage shut-off

  • For volume flow rate ranges up to 28836 m³/h or 8010 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, up to class C







Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow








General Information

Application

  • Rectangular VAV terminal units for use in ventilation and air conditioning systems
  • For controlling, restricting, or shutting off supply and extract air flows
  • Closed-loop volume flow control using an external power supply
  • For variable or constant volume flow systems
  • Shut-off by means of switching (equipment supplied by others)
  • Can also be used for duct or room pressure control with suitable control components


Special features

  • Integral effective pressure sensor with 3 mm measuring holes (resistant to dust and pollution)
  • Factory set-up or programming and aerodynamic function testing
  • Parameters can also later be set on the control component. Depending on the control component, an additional adjustment device may be necessary



Nominal sizes

  • 36 nominal sizes from 200 × 100 to 1000 × 600
  • Not all attachments may be available or suitable for all sizes of terminal units



Variants

  • TVT: VAV terminal unit
  • TVT-D: VAV terminal unit with acoustic cladding
  • Units with acoustic cladding and/or secondary silencer Type TX for demanding acoustic requirements
  • Acoustic cladding cannot be retrofitted



Construction



  • Galvanised sheet steel
  • P1: Powder-coated, silver (RAL 7001)



Parts and characteristics

  • Ready-to-commission unit which consists of mechanical parts and control components
  • Averaging effective pressure sensor for volume flow rate measurement
  • Damper blades
  • Factory assembled control components complete with wiring and tubing
  • Aerodynamic functional testing on a special test rig before shipping of each unit
  • Set-up data is given on a label or volume flow rate scale affixed to the unit
  • High volume flow rate control accuracy



Attachments

  • EASY controller: compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
  • Compact controller: compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
  • Universal controller: controller, effective pressure transducer, and actuators for special applications
  • LABCONTROL: Control components for air management systems



Useful additions

  • Secondary silencer Type TX for demanding acoustic requirements
  • Heat exchanger Type WT



Construction features

  • Rectangular casing
  • Flanges on both ends, suitable for duct connection
  • Opposed blade action, blades connected by internal gears (enclosed) at both ends
  • Damper blades with replaceable seals
  • Position of the damper blade indicated externally at shaft extension
  • Bearings with ring seals



Materials and surfaces

Galvanised sheet steel construction

  • Casing made of galvanised sheet steel
  • Shaft and linkage made of galvanised steel
  • Damper blades and effective pressure sensor made of aluminium
  • Gears made of anti-static plastic (ABS), temperature resistant to 50 °C
  • Plastic plain bearings



Powder-coated construction (P1)

  • Casing made of galvanised sheet steel, powder-coated



Variant with acoustic cladding (D)

  • Acoustic cladding made of galvanised sheet steel
  • Rubber seal for the insulation of structure-borne noise
  • Lining is mineral wool



Mineral wool

  • To EN 13501, fire rating Class A1, non-combustible
  • RAL quality mark RAL-GZ 388
  • Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008



Standards and guidelines

Fulfils the hygiene requirements of

  • EN 16798, Part 3
  • VDI 6022, Sheet 1
  • DIN 1946, Part 4
  • For other applicable standards and guidelines refer to the hygiene certificate

Casing leakage

  •  EN 1751, Class C; if B + H ≤ 400, Class B



Closed blade air leakage

  • EN 1751, Class 3
  • Meets the general requirements of DIN 1946, part 4, with regard to the acceptable closed blade air leakage



Maintenance

  • Maintenance-free as construction and materials are not subject to wear


Technical information

Function, Technical data, Quick sizing, Specification text, Order code, Related Products

  • Function
  • TECHNICAL DATA
  • QUICK SIZING
  • SPECIFICATION TEXT
  • ORDER CODE
  • RELATED PRODUCTS
Schematic illustration of the TVT TVT_gc_02ai.png

① Effective pressure sensor

② Damper blade with seal

③ Gears

④ Control components, e.g. an Easy controller


The VAV terminal unit is fitted with an effective pressure sensor for measuring the volume flow rate.

The control components (attachments) include an effective pressure transducer that transforms the effective pressure into an electric signal, a controller, and an actuator; the control functions can be achieved with an Easy controller or with a Compact controller or with individual components (Universal or LABCONTROL).

For most applications, the setpoint value comes from a room temperature controller.

The controller compares the actual value with the setpoint value and alters the control signal of the actuator if there is a difference between the two values.




Nominal sizes200 × 100 to 1000 × 600 mm
Volume flow rate range45 – 6100 l/s or 162 – 21960 m³ /h
Volume flow rate control range (unit with dynamic differential pressure measurement)Approx. 20 to 100 % of the nominal volume flow rate
Minimum differential pressure5 – 40 Pa
Maximum differential pressure1000 Pa
Operating temperature10 – 50 °C


Quick sizing tables provide a good overview of the minimum differential pressures, the volume flow rate accuracy and the room sound pressure levels that can be expected. Intermediate values may be achieved by interpolation.

The sound power levels for calculating the sound pressure levels were measured in the TROX laboratory according to DIN EN ISO 5135 - see "Basic information and nomenclature".

Precise results and spectral data for all control components can be calculated with our Easy Product Finder design program. The first selection criteria for the nominal size are the actual volume flow rates qvmin and qvmax.

Volume flow rate ranges and minimum differential pressure values
The minimum differential pressure of VAV terminal units is an important factor in designing the ductwork and in rating the fan including speed control. Sufficient static differential pressure (Δpstat,min) must be ensured for all operating conditions and for all controllers. The measurement points for fan speed control must be selected accordingly. The volume flow rates given for VAV terminal units depend on the nominal size and on the control component (attachment) that is installed.

Volume flow rate ranges and minimum differential pressure values

Control component for dynamic pressure measurements – Easy (potentiometers)
Attachment: Easy


BHqv [l/s]qv [m³/h]Δpstmin [Pa]Δqv [±%]
2001004214921013
200100883158438
20010013348017996
200100179646301805
3001006222321013
3001001314727438
30010020072017996
300100269969301805
4001008329821013
4001001756297438
400100267961171006
4001003581292301805
50010010437221013
5001002187867438
5001003341201171006
5001004481615301805
60010012444621013
6001002629437438
6001004001441171006
6001005381938301805
200200832982813
2002001756297368
20020026796117846
2002003581292301515
3002001244462813
3002002629437368
300200400144117846
3002005381938301515
4002001665952813
40020034912587368
400200534192117846
4002007172584301515
5002002077432813
50020043715727368
500200667240117846
5002008973230301515
6002002488922813
60020052418877368
600200800288117836
60020010763876301515
70020028910402813
70020061122017368
700200934336117836
70020012564522301515
80020033111892813
80020069925157368
8002001067384217846
80020014355168301515
30030020373021012
30030042915449438
300300655235920996
3003008813173361795
40030027197321012
40030057220599438
400300874314520996
40030011754231361795
500300339121721012
50030071525749438
5003001092393220996
50030014695289361805
600300406146021012
60030085830899438
6003001311471920996
60030017636348361805
700300474170321012
700300100136049438
7003001529550420996
70030020567405361805
800300541194621012
800300114441189438
8003001748629120996
80030023508463361805
900300609219021012
900300128746349438
9003001966707720996
90030026449521361805
1000300676243321012
1000300143051489438
10003002184786420996
1000300293810579361805
400400376135231112
400400795286110477
40040012144370221086
40040016335879391955
500400470169031112
500400993357610477
50040015185463221086
50040020417349391955
600400564202831112
6004001192429210477
60040018216555221086
60040024498819391955
700400658236631112
7004001391500710477
70040021247648221086
700400285810289391955
800400752270431112
8004001589572210477
80040024288740221086
800400326611758391955
900400845304231112
9004001788643710477
90040027319833221086
900400367413228391955
1000400939338031112
10004001987715310477
1000400303510925221086
1000400408214698391955
50050054519592913
500500115241468408
5005001759633319936
50050023668520331685
60050065423512913
600500138249758408
6005002111760019936
600500284010224331685
70050076227432913
700500161358058408
7005002463886619936
700500331311928331685
80050087131352913
800500184366348408
80050028151013319936
800500378613632331685
90050098035262913
900500207374638408
90050031661139919936
900500426015336331685
1000500108939182913
1000500230382928408
100050035181266619936
1000500473317040331685
600600811291921012
600600171661789438
6006002621943620996
600600352612695361805
8006001082389221012
800600228882379438
80060034951258220996
800600470116927361805
10006001352486521012
10006002860102969438
100060043691572820996
1000600587721159361805

① Basic unit
② Basic unit with secondary silencer TX




Volume flow rate ranges and minimum differential pressure values
Control component dynamic measurement principle – qv with expansion module
Attachments: BC0, BL0, BM0, BM0-J6


BHqv [l/s]qv [m³/h]Δpstmin [Pa]Δqv [±%]
2001004214921013
20010012645415896
200100211759412485
2001002951064804874
3001006222321013
30010018968115896
3001003161138412485
3001004431596804874
4001008329821013
40010025290815896
4001004221519412485
4001005912129814874
50010010437221013
500100315113515896
5001005271898412485
5001007392661804874
60010012444621013
600100378136215896
6001006332277412485
6001008863193804874
200200832982813
20020025290815756
2002004221519412085
2002005912129814084
3002001244462813
300200378136215756
3002006332277412085
3002008863193804084
4002001665952813
400200504181615756
4002008433036412085
40020011824257804084
5002002077432813
500200630226915756
50020010543796412085
50020014785322804084
6002002488922813
600200756272315756
60020012654555412085
60020017736386804084
70020028910402813
700200883317715756
70020014765313412085
70020020697450804084
80020033111892813
8002001009363115756
80020016876073412085
80020023658515804084
30030020373021012
300300619222918896
30030010363729492484
30030014525228964863
40030027197321012
400300826297318896
40030013814972492484
40030019366972964873
500300339121721012
5003001032371618896
50030017276216492484
50030024208715964873
600300406146021012
6003001239445918896
60030020727459492484
600300290510458964873
700300474170321012
7003001445520218896
70030024178701492484
700300338812200964863
800300541194621012
8003001651594518896
80030027639945492484
800300387313944964873
900300609219021012
9003001858668918896
900300310811188492484
900300435715687964873
1000300676243321012
10003002064743218896
1000300345312431492484
1000300484117430964873
400400376135231112
4004001147413019966
40040019196908532694
400400269096861045283
500400470169031112
5004001434516319966
50040023998635532694
5004003363121081045283
600400564202831112
6004001721619519966
600400287910363532694
6004004036145301045283
700400658236631112
7004002008722819966
700400335812089532694
7004004708169511045283
800400752270431112
8004002294826019966
800400383813817532694
8004005381193731045283

① Basic unit
② Basic unit with secondary silencer TX




Volume flow rate ranges and minimum differential pressure values
Control component for dynamic pressure measurements - qv standard
Attachments: BUDN, BUDNF, LN0, LK0, XB0, XB4, (B11 *, B1B *)


BHqv [l/s]qv [m³/h]Δpstmin [Pa]Δqv [±%]
2001004214921013
20010010939311677
200100177636291745
200100244880553334
3001006222321013
30010016458911677
300100265954291745
3001003661320553334
4001008329821013
40010021878611677
4001003541273291745
4001004891761553334
50010010437221013
50010027398211677
5001004421591291745
5001006112201553334
60010012444621013
600100327117811677
6001005301909291745
6001007332641553334
200200832982813
20020021878611567
2002003541273291465
2002004891761552804
3002001244462813
300200327117811567
3002005301909291465
3002007332641552794
4002001665952813
400200436157011567
4002007072546291465
4002009783521552794
5002002077432813
500200545196311567
5002008843182291465
50020012224402552804
6002002488922813
600200654235511567
60020010613819291465
60020014675282552794
70020028910402813
700200763274711567
70020012384455291465
70020017116162552794
80020033111892813
800200872314011567
80020014145092291465
80020019567043552794
30030020373021012
300300536192813677
3003008693127351745
30030012014325663334
40030027197321012
400300714257113677
40030011584169351745
40030016015767663334
500300339121721012
500300893321413677
50030014485212351745
50030020027209663334
600300406146021012
6003001071385713677
60030017376253351745
60030024028650663334
700300474170321012
7003001250449913677
70030020277296351745
700300280310092663334
800300541194621012
8003001428514213677
80030023168338351745
800300320311534663334
900300609219021012
9003001607578513677
90030026069381351745
900300360412976663334
1000300676243321012
10003001786642813677
1000300289510423351745
1000300400514418663334
400400376135231112
400400992357215726
40040016095792381895
40040022258012713624
500400470169031112
5004001240446515726
50040020117240381895
500400278110015713624
600400564202831112
6004001488535815726
60040024138688381895
600400333812018713624
700400658236631112
7004001736625115726
700400281610136381895
700400389414021713624
800400752270431112
8004001984714415726
800400321811584381895
800400445116024713624
900400845304231112
9004002233803715726
900400362013033381895
900400500718028713624
1000400939338031112
10004002481893015726
1000400402314481381895
1000400556420031713624
50050054519592913
5005001438517613627
50050023328394321635
500500322511611613114
60050065423512913
6005001726621213627
600500279810072321635
600500387013933613114
70050076227432913
7005002013724713627
700500326411751321635
700500451516255613114
80050087131352913
8005002301828213627
800500373113430321635
800500516018577613114
90050098035262913
9005002588931713627
900500419715109321635
900500580520900613114
1000500108939182913
100050028761035313627
1000500466316787321635
1000500645023222613114
600600811291921012
6006002143771313677
600600347412507351745
600600480517301663334
8006001082389221012
80060028571028413677
800600463216676351745
800600640723068663334
10006001352486521012
100060035711285513677
1000600579120846351745
1000600801028836663334

① Basic unit

② Basic unit with secondary silencer TX

* Control component being phased out



Terminal unit maximum size with some attachments

Type TVT only up to 1000 × 300 mm or 800 × 400 mm with attachment BUDNF, LN0, LK0, XB0 or (B1B *)




Volume flow rate ranges and minimum differential pressure values
Control component for static pressure measurements
Attachments: BUSN, BUSNF, BUSS, XD0, XD4, TUN, TUNF, TUS, TUSD, ELAB (BP1 *, BPG *, BPB *, BB1 *, BBB *)


BHqv [l/s]qv [m³/h]Δpstmin [Pa]Δqv [±%]
2001004214921013
20010010939311677
200100177636291745
200100244880553334
3001006222321013
30010016458911677
300100265954291745
3001003661320553334
4001008329821013
40010021878611677
4001003541273291745
4001004891761553334
50010010437221013
50010027398211677
5001004421591291745
5001006112201553334
60010012444621013
600100327117811677
6001005301909291745
6001007332641553334
200200832982813
20020021878611567
2002003541273291465
2002004891761552804
3002001244462813
300200327117811567
3002005301909291465
3002007332641552794
4002001665952813
400200436157011567
4002007072546291465
4002009783521552794
5002002077432813
500200545196311567
5002008843182291465
50020012224402552804
6002002488922813
600200654235511567
60020010613819291465
60020014675282552794
70020028910402813
700200763274711567
70020012384455291465
70020017116162552794
80020033111892813
800200872314011567
80020014145092291465
80020019567043552794
30030020373021012
300300536192813677
3003008693127351745
30030012014325663334
40030027197321012
400300714257113677
40030011584169351745
40030016015767663334
500300339121721012
500300893321413677
50030014485212351745
50030020027209663334
600300406146021012
6003001071385713677
60030017376253351745
60030024028650663334
700300474170321012
7003001250449913677
70030020277296351745
700300280310092663334
800300541194621012
8003001428514213677
80030023168338351745
800300320311534663334
900300609219021012
9003001607578513677
90030026069381351745
900300360412976663334
1000300676243321012
10003001786642813677
1000300289510423351745
1000300400514418663334
400400376135231112
400400992357215726
40040016095792381895
40040022258012713624
500400470169031112
5004001240446515726
50040020117240381895
500400278110015713624
600400564202831112
6004001488535815726
60040024138688381895
600400333812018713624
700400658236631112
7004001736625115726
700400281610136381895
700400389414021713624
800400752270431112
8004001984714415726
800400321811584381895
800400445116024713624
900400845304231112
9004002233803715726
900400362013033381895
900400500718028713624
1000400939338031112
10004002481893015726
1000400402314481381895
1000400556420031713624
50050054519592913
5005001438517613627
50050023328394321635
500500322511611613114
60050065423512913
6005001726621213627
600500279810072321635
600500387013933613114
70050076227432913
7005002013724713627
700500326411751321635
700500451516255613114
80050087131352913
8005002301828213627
800500373113430321635
800500516018577613114
90050098035262913
9005002588931713627
900500419715109321635
900500580520900613114
1000500108939182913
100050028761035313627
1000500466316787321635
1000500645023222613114
600600811291921012
6006002143771313677
600600347412507351745
600600480517301663334
8006001082389221012
80060028571028413677
800600463216676351745
800600640723068663334
10006001352486521012
100060035711285513677
1000600579120846351745
1000600801028836663334

① Basic unit

② Basic unit with secondary silencer TX

* Control component being phased out



Terminal unit maximum size with some attachments

Type TVT only up to 1000 × 500 mm with attachment XD0

Type TVT only up to max. 1000 × 300 mm or 800 × 400 mm with attachment BUSNF, (BPG *, BPB *, BBB *)



Quick sizing table for sound pressure levels


The quick sizing tables are based on generally accepted attenuation levels. If the sound pressure level exceeds the required level, a larger air terminal unit and/or a silencer or acoustic cladding is required. For more information on the acoustic data, see basic information and nomenclature.



Quick sizing table for air-regenerated noise LPA
Controller including silencer
(total volume flow rate range of type)


BHqv [l/s]qv [m³/h]150 Pa500 Pa
2001004214944205634
20010012645448276039
20010021175948n.V.6140
200100295106448n.V.6042
3001006222345215735
30010018968148286040
300100316113848n.V.6040
300100443159647n.V.6042
4001008329846225836
40010025290848286040
400100422151947n.V.6040
400100591212947n.V.6042
50010010437247235937
500100315113548286040
500100527189847n.V.6041
500100739266147n.V.6042
60010012444647246038
600100378136247286040
600100633227747n.V.6041
600100886319347n.V.5942
2002008329846225836
20020025290848296040
200200422151947n.V.6041
200200591212947n.V.6042
30020012444647246038
300200378136247296040
300200633227747n.V.6041
300200886319347n.V.5943
40020016659548246038
400200504181647296040
400200843303647n.V.5942
4002001182425746n.V.5943
50020020774347246038
500200630226947295940
5002001054379647n.V.5942
5002001478532246n.V.5943
60020024889247246038
600200756272347295941
6002001265455546n.V.5942
6002001773638646n.V.5943
700200289104047245938
700200883317747295941
7002001476531346n.V.5942
7002002069745046n.V.5943
800200331118947245937
8002001009363147295941
8002001687607346n.V.5942
8002002365851546n.V.5843
30030020373048256038
300300619222947295941
3003001036372947n.V.5942
3003001452522846n.V.5943
40030027197347256038
400300826297347305941
4003001381497246n.V.5942
4003001936697246n.V.5943
500300339121747255938
5003001032371647305941
5003001727621646n.V.5942
5003002420871546n.V.5843
600300406146047255938
6003001239445946305941
6003002072745946n.V.5942
60030029051045846n.V.5843
700300474170347255938
7003001445520246305941
7003002417870146n.V.5842
70030033881220045n.V.5843
800300541194647255937
8003001651594546305942
8003002763994546n.V.5842
80030038731394445n.V.5843
900300609219047255937
9003001858668946305842
90030031081118846n.V.5843
90030043571568745n.V.5843
1000300676243346255937
10003002064743246305842
100030034531243145n.V.5843
100030048411743045n.V.5843
400400376135247255938
4004001147413046305941
4004001919690846n.V.5942
4004002690968646n.V.58n.V.
500400470169047255938
5004001434516346305942
5004002399863546n.V.5842
50040033631210845n.V.58n.V.
600400564202847255938
6004001721619546305842
60040028791036346n.V.5842
60040040361453045n.V.58n.V.
700400658236646255938
7004002008722846305842
70040033581208945n.V.5842
70040047081695145n.V.58n.V.
800400752270446255938
8004002294826046305842
80040038381381745n.V.5843
80040053811937345n.V.58n.V.

Air-regenerated noise LPA [dB(A)] at static differential pressure Δpst 150 or 500 Pa

① Basic unit

② Basic unit with secondary silencer TX

n.a.: The specified static differential pressure Δpst is lower than the minimum differential pressure Δpst,min.




Quick sizing table for case-radiated noise LPA
Controller including acoustic cladding
(total volume flow rate range of type)


BHqv [l/s]qv [m³/h]150 Pa500 Pa
2001004214930184230
20010012645435224734
20010021175937244936
200100295106438255038
3001006222331194431
30010018968136234836
300100316113838255038
300100443159639275239
4001008329832204532
40010025290837244937
400100422151939275139
400100591212940285340
50010010437233214633
500100315113538255037
500100527189840275240
500100739266141295341
60010012444634214634
600100378136238265138
600100633227740285340
600100886319342295442
2002008329832204532
20020025290837244937
200200422151939275139
200200591212940285340
30020012444634214634
300200378136238265138
300200633227740285340
300200886319342295442
40020016659535224735
400200504181639275239
400200843303641295441
4002001182425743305543
50020020774336234835
500200630226940285240
5002001054379642305442
5002001478532244315643
60020024889236244936
600200756272341285341
6002001265455543305543
6002001773638644325644
700200289104037244937
700200883317741295441
7002001476531343315643
7002002069745045325745
800200331118937255037
8002001009363142295442
8002001687607344315644
8002002365851545335745
30030020373036234835
300300619222940285240
3003001036372942305442
3003001452522844315643
40030027197337244936
400300826297341295341
4003001381497243315543
4003001936697245325744
500300339121737255037
5003001032371642295442
5003001727621644315644
5003002420871545335845
600300406146038265038
6003001239445943305542
6003002072745945325744
60030029051045846335846
700300474170339265138
7003001445520243315543
7003002417870145335745
70030033881220047345946
800300541194639275139
8003001651594544315643
8003002763994546335845
80030038731394447345947
900300609219040275239
9003001858668944315644
90030031081118846345846
90030043571568747356047
1000300676243340275240
10003002064743244325744
100030034531243146345946
100030048411743048356048
400400376135238255038
4004001147413042305542
4004001919690844325744
4004002690968646335845
500400470169039265138
5004001434516343315543
5004002399863545335745
50040033631210846345946
600400564202839275239
6004001721619544315643
60040028791036346335846
60040040361453047355947
700400658236640275240
7004002008722844325744
70040033581208946345946
70040047081695148356047
800400752270440285340
8004002294826045325745
80040038381381747345947
80040053811937348366048

Case-radiated noise LPA [dB(A)] at static differential pressure Δpst 150 or 500 Pa

① Basic unit

② Basic unit with acoustic cladding

n.a.: The specified static differential pressure Δpst is less than required minimum differential pressure Δpst,min.



Note:

Information on case-radiated noise for combinations of basic unit and optional acoustic cladding and secondary silencer can be found in the Easy Product Finder design program.


Rectangular VAV terminal units for variable and constant air volume systems, suitable for supply or extract air, available in 36 nominal sizes. High volume flow rate control accuracy. Ready-to-commission unit which consists of the mechanical parts and the electronic control components Each unit contains an averaging effective pressure sensor for volume flow rate measurement and damper blades. Factory mounted control components complete with wiring and tubing Effective pressure sensor with 3 mm measuring holes, hence resistant to contamination. Position of the damper blades indicated externally at the shaft extension. The damper blade is factory set to open position, which allows a ventilation airflow even without control; this does not apply to variants with defined safe position NC (normally closed).

Special features

  • Integral effective pressure sensor with 3 mm measuring holes (resistant to dust and pollution)
  • Factory set-up or programming and aerodynamic function testing
  • Parameters can also later be set on the control component. Depending on the control component, an additional adjustment device may be necessary

Materials and surfaces

  • Casing made of galvanised sheet steel
  • Shaft and linkage made of galvanised steel
  • Damper blades and differential pressure sensor made of aluminium
  • Gears made of anti-static plastic (ABS), resistant to temperatures up to 50 °C
  • Plastic plain bearings


Connection

  • Flanges on both ends, suitable for duct connection


Technical data

  • Nominal sizes: 200 × 100 to 1000 × 600 mm
  • Volume flow rate range:  42 – 5877 l/s or 149 – 21159 m³/h
  • Minimum differential pressure: up to 104 Pa
  • Maximum differential pressure: 1000 Pa
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class C (B + H ≤400, class B)



Specification text for attachment



Variable volume flow control with electronic Easy controller for applying a reference value and capturing an actual value to be integrated with the central BMS.

  • Supply voltage 24 V AC/DC
  • Signal voltages 0 – 10 V DC
  • Possible override controls with external switches using volt-free contacts: CLOSE, OPEN, qᵥmin and qᵥmax without adjustment device
  • Potentiometers with percentage scales to set the volume flow rates qᵥmin and qᵥmax without adjustment device
  • The actual value signal relates to the nominal volume flow rate so that commissioning and subsequent adjustment are simplified
  • Volume flow rate control range: approx. 20 – 100 % of the nominal volume flow rate
  • Clearly visible external indicator light for signalling the functions: Set, not set, and power failure
  • Electrical connections with screw terminals
  • Double terminals for looping the supply voltage, i.e. for the simple connection of voltage transmission to the next controller



Sizing data



  • q _______________________ [m³/h]
  • Δpst _______________________

    [Pa]

Air-regenerated noise

  • LPA _______________________

    [dB(A)]

Case-radiated noise

  • LPA _______________________

    [dB(A)]

Life cycle assessment
A life cycle assessment is available for the product series in form of an Environmental Product Declaration (EPD) that has been checked and published by a programme holder.


Order code for volume flow control (with Easy attachment)
TVTD / 600 × 400 / Easy
||||
1245

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

4 Nominal size [mm]
B × H

5 Attachments (control component)
Easy Volume flow controller, dynamic, analogue interface, setting of qvmin and qvmax with potentiometers


Order example: TVT-D/500x400/Easy
Acoustic claddingWith
MaterialGalvanised sheet steel
Nominal size500 × 400 mm
Attachments (control component)Easy controller; volume flow controller, dynamic, analogue interface,
setting of qvmin and qvmax with potentiometers

,
Order code for volume flow control (with VARYCONTROL attachment)
TVTDP1 / 600 × 400 / XB4 / V0 / 200 – 900 [m³/h] / NO
|||||||||
1234578910

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control component)

For example
BC0 Compact controller
XB4 Universal controller (VARYCONTROL)

7 Operating mode
F Constant value (one setpoint value)
V Variable (setpoint value range)

8 Signal voltage range

For the actual and setpoint value signals
0 0 – 10 V DC
2 2 – 10 V DC

9 Operating values for factory setting
Volume flow rates [m³/h or l/s] qᵥconst. (with operating mode F)qᵥmin – qᵥmax (with operating mode V)

10 Damper blade position
Only spring return actuators
NO Power off to OPEN
NC Power off to CLOSE

Order example: TVT/500×300/BC0/V0/2000–5500 m³/h
Acoustic claddingWithout
MaterialGalvanised sheet steel
Nominal size500 × 300 mm
Attachment (control component)Compact controller, dynamic transducer, analogue or MP bus interface
Operating modeVariable operation
Signal voltage range0 – 10 V DC
Operating valuesqᵥmin = 2000 m³/hqᵥmax = 5500 m³/h

, Order code for volume flow control (with TROX UNIVERSAL attachment)
TVTDP1 / 600 × 400 / TUNF / RS / M / 0 / UMZ / / NC
|||||||||||
1234567891011

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control component)
TROX UNIVERSAL controller with
TUN Actuator (150 s)
TUNF Spring return actuator (150 s)
TUS Fast-running actuator (3 s)
TUSD Fast-running actuator (3 s), with digital communication interface (TROX HPD)

6 Equipment function

Room control
RS Supply air control (Room Supply)
RE  Extract air control (Room Extract)

7 Volume flow rate setting
M Master (RMF)
S SlaveF Constant flow rate controller

8 Signal voltage range
0 0 – 10 V DC2 2 – 10 V DC

9 Expansion modules
Option 1: Power supply
No entry required: 24 V AC/DCT EM-TRF for 230 V ACU EM-TRF-USV for 230 V AC, provides uninterruptible power supply (UPS)

Option 2: Digital communication interface
No entry: none
B
EM-BAC-MOD-01 for BACnet MS/TP
M EM-BAC-MOD-01 for Modbus RTUI EM-IP for BACnet/IP, Modbus/IP and web server
R EM-IP with real time clock

Option 3: Automatic zero point correction
No entry: none
Z EM-AUTOZERO with solenoid valve

10 Operating values for factory setting
Volume flow rate [m³/h or l/s]

Master
qᵥmin: minimum volume flow rate (room value)
qᵥmax: maximum volume flow rate (room value)
qᵥconst_Supply air: constant supply air (room value)
qᵥconst_Extract air: constant extract air (room value)
qᵥDiff: supply air/extract air difference (room value)

Constant value
qᵥconst: Constant volume flow rate

Slave
No entry required

11 Damper blade position
Only spring return actuators
NO Power off to OPEN
NC Power off to CLOSE

Useful additions

Room control panel
BE-LCD 40-character display

Order example: TVT-P1/600x400/TUN/RS/M/0/Z/0/5200/0/0/0 m³/h
Acoustic claddingWithout
MaterialPowder-coated RAL 7001, silver grey
Nominal size600 × 400 mm
Attachments (control component)TROX UNIVERSAL controller, actuator run time 150 s
Equipment functionRoom control, supply air
Volume flow rate settingMaster
Signal voltage range0 – 10 V DC
Expansion moduleswith expansion module EM-AUTOZERO with solenoid valve for automatic zero point correction
Operating valuesqᵥmin: 0 m³/h (room value)qᵥmax: 5200 m³/h (room value)No constant supply/extract airNo supply air/extract air difference

, Order code for differential pressure control (with VARYCONTROL attachment)
TVTDP1 / 600 × 400 / XF4 / PDS / V0 / 300 – 500 [Pa] / NO
||||||||||
12345678910

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control component)

For example
XF0 Compact controller for duct pressure
XF4 Universal controller for duct pressure (VARYCONTROL)

6 Equipment function/Installation location
PDS Duct pressure control, supply air
PDE Duct pressure control, extract air
PRS Room pressure control, supply air
PRE Room pressure control, extract air

7 Operating mode
F Constant value (one setpoint value)
V Variable (setpoint value range)

8 Signal voltage range

For the actual and setpoint value signals
0 0 – 10 V DC
2 2 – 10 V DC

9 Operating values for factory setting
Differential pressure [Pa]

For duct pressure control, enter the differential pressure [Pa] as an absolute value
Δpconst. (with operating mode F)
Δpmin – Δpmax (with operating mode V)

10 Damper blade position
Only spring return actuators
NO Power off to OPEN
NC Power off to CLOSE

Order example: TVT-D/500x400/XF4/PDS/F0/450 Pa/NC
Acoustic claddingWith
MaterialGalvanised sheet steel
Nominal size500 × 400 mm
Attachments (control component)VARYCONTROL Universal controller duct pressure, spring return actuator
Equipment functionDuct pressure control, supply air
Operating modeConstant value (one setpoint value)
Signal voltage range0 – 10 V DC
Operating valuesΔpconst. = 450 Pa
Damper blade positionPower off to CLOSE

, Order code for differential pressure control (with TROX UNIVERSAL attachment)
TVTDP1 / 600 × 400 / TUNF / PRS / MFP / 0 / UMZ / / NC
|||||||||||
1234567891011

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control component)
TROX UNIVERSAL controller with
TUN Actuator (150 s)
TUNF Spring return actuator (150 s)
TUS Fast-running actuator (3 s)
TUSD Fast-running actuator (3 s), with digital communication interface (TROX HPD)

6 Equipment function
Pressure control
PRS Room pressure control, supply air
PRE Room pressure control, extract air
PDS Duct pressure control, supply air
PDE Duct pressure control, extract air

7 Differential pressure setting
MFP Master, constant pressure control
MVP Master, variable differential pressure control
SFP Slave, constant pressure control
SVP Slave, variable differential pressure control

8 Signal voltage range
0 0 – 10 V DC
2 2 – 10 V DC

9 Expansion modules
Option 1: Power supply
No entry required: 24 V AC/DC
T EM-TRF for 230 V AC
U EM-TRF-USV for 230 V AC, provides uninterruptible power supply (UPS)

Option 2: Digital communication interface
No entry: none
B
EM-BAC-MOD-01 for BACnet MS/TP
M EM-BAC-MOD-01 for Modbus RTU
I EM-IP for BACnet/IP, Modbus/IP and web server
R EM-IP with real time clock

Option 3: Volume flow rate measurement
No entry: none
V  EM-V Volume flow rate measurement for differential pressure control

Option 4: Automatic zero point correction
No entry required: None
Z EM-AUTOZERO solenoid valve (only with V)

10 Operating values for factory
flow rate [m³/h or l/s], pressure [Pa]


Slave SVP
Δpmin: minimum differential pressure
Δpmax: maximum differential pressure

Slave SFP
Δpconst: Constant differential pressure

Master MFP and MVP – same as slave, but additionally
:qᵥmin: minimum volume flow rate (room value)
qᵥmax: maximum volume flow rate (room value)
qᵥconst_Supply air: constant supply air (room value)
qᵥconst_Extract air: constant extract air (room value)
qᵥDiff: supply air/extract air difference (room value)


11 Damper blade position
Only spring return actuators
NO Power off to OPEN
NC Power off to CLOSE

Useful additions

Room control panel
BE-LCD 40-character display

The differential pressure transducer required for room or duct pressure control has to be ordered separately, e.g.
PT-699 Differential pressure transducer for room pressure control
PT-699-DUCT Differential pressure transducer for duct pressure control, including tube and pressure tap

Order example: TVT-D-P1/200x100/TUSD/PRE/SFP/2/-20Pa

Acoustic claddingWith
MaterialPowder-coated RAL 7001, silver grey
Nominal size200 × 100 mm
Attachments (control component)Controller TROX UNIVERSAL, fast-running actuator (3 s) with digital communication interface (TROX HPD)
Equipment functionRoom pressure control, extract air
Differential pressure settingSlave, constant pressure control
Signal voltage range2 – 10 V DC
Operating valuesΔpconst = -20 Pa

, Order code for room control (with EASYLAB attachment)
TVTDP1/600×400/ELAB/S/RS/UMZ/LAB/
| | | | | | | | | |
1 2 3 4 5 6 7 9 10 11

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control components
ELAB EASYLAB controller TCU3

6 Actuators
S Fast-running actuator (3 s)
SD Fast-running actuator (3 s), with digital communication interface (TROX HPD)

7 Equipment function

Room control
RS Supply air control (Room Supply)
RE Extract air control (Room Exhaust)
PC Differential pressure control (Pressure Control)

9 Expansion modules
Option 1: Power supply
No entry required: 24 V AC/DC
T EM-TRF for 230 V AC
U EM-TRF-USV for 230 V AC, provides uninterruptible power supply (UPS)

Option 2: Digital communication interface
No entry: none
B
EM-BAC-MOD-01 for BACnet MS/TP
M EM-BAC-MOD-01 for Modbus RTU
I EM-IP for BACnet/IP, Modbus/IP and web server
R EM-IP with real time clock

Option 3: Automatic zero point correction
No entry: none
Z EM-AUTOZERO Solenoid valve for automatic zero point correction

10 Additional functions
Room management function has been deactivated
LAB extract air led system (laboratories)
CLR supply air led system (clean rooms)

Room management function is active
LAB-RMF Extract air led system
CLR-RMF Supply air led system

11 Operating values for factory setting
(only required when room management function is active)

Volume flow rate [m³/h or l/s], pressure [Pa]

Total extract air/supply air of room:
qv1: Standard mode
qv2: reduced operation
qv3: increased operation
qv4: constant supply air
qv5: constant extract air
qv6: Supply air/extract air difference
Δp,set: Setpoint pressure (only with differential pressure control)

Useful additions
Room control panel (only for devices with RMF)
BE-LCD 40-character display

Differential pressure transducer for room pressure control equipment function must be ordered separately, e.g.
PT-699 Measuring range ±50 Pa or ±100 Pa
PT-GB604 Measuring range ±100 Pa

Order example: TVT-D-P1/600×400/ELAB/S/RS/CLR-RMF/3000/1500/5000/200/90/300 m³/h
Acoustic claddingWith
MaterialPowder-coated RAL 7001, silver grey
Nominal size600 × 400 mm
Attachments (control component)EASYLAB controller TCU3
Actuatorfast-running actuator (3 s)
Equipment functionSupply air control
Additional functionsupply air led system - room management function is active
Operating valuesStandard mode 3000 m³/h
 reduced operation 1500 m³/h
 increased operation 5000 m³/h
 constant supply air 200 m³/h
 constant extract air 90 m³/h
 Supply air/extract air difference 300 m³/h

, Order code for single operation (with EASYLAB attachment)
TVTD/P1/600×400/ELAB/S/ECE0/UMZ/
| | | | | | | | | |
1 2 3 4 5 6 7 8 9 11

1 Type
TVT VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

3 Material
No entry: galvanised sheet steel
P1 Powder-coated RAL 7001, silver grey

4 Nominal size [mm]
B × H

5 Attachments (control components)
ELAB EASYLAB controller TCU3

6 Actuators
S Fast-running actuator (3 s)
SD Fast-running actuator (3 s), with digital communication interface (TROX HPD)

7 Equipment function
Single operation
SC Supply air controller
EC Extract air controller


8 External volume flow rate setting
E0 Voltage signal 0 – 10 V DC
E2 Voltage signal 2 – 10 V DC
2P Switch contacts (provided by others) for 2 switching steps
3P Switch contacts (provided by others) for 3 switching steps
F Constant flow rate value, no signalling required

9 Expansion modules
Option 1: Power supply
No entry: 24 V AC
T EM-TRF for 230 V AC
U EM-TRF-USV for 230 V AC, provides uninterruptible power supply (UPS)

Option 2: Digital communication interface
No entry: none
B
EM-BAC-MOD-01 for BACnet MS/TP
M EM-BAC-MOD-01 for Modbus RTU
I EM-IP for BACnet/IP, Modbus/IP and web server
R EM-IP with real time clock

Option 3: Automatic zero point correction
No entry: none
Z EM-AUTOZERO Solenoid valve for automatic zero point correction

11 Operating values [m³/h or l/s, Pa]
Depending on external volume flow rate setting
E0, E2: qvmin/qvmax
2P: qv1/qv2
3P: qv1/qv2/qv3
F: qv1

Order example: TVT/600×400/ELAB/S/SC/2P/3000/7000
Acoustic claddingWithout
Nominal size600 × 400 mm
Attachments (control component)EASYLAB controller TCU3
Actuatorfast-running actuator (3 s)
Equipment functionSupply air controller
External volume flow rate settingSwitch contacts (provided by others) for 2 switching steps
Operating valuesqv1 =3000 m³/hqv2 = 7000 m³/h

Variants, Attachments, Dimensions and weight, Installation and commissioning, Product details

  • VARIANTS
  • DIMENSIONS AND WEIGHT
  • Installation and commissioning
  • PRODUCT DETAILS


NS (B × H)B₁B₂H₁H₂kg
200 × 1002342761341766
300 × 1003343761341767
400 × 1004344761341768
500 × 1005345761341769
600 × 10063467613417610
200 × 2002342762342769
300 × 20033437623427610
400 × 20043447623427611
500 × 20053457623427612
600 × 20063467623427613
700 × 20073477623427614
800 × 20083487623427615
300 × 30033437633437610
400 × 30043447633437611
500 × 30053457633437612
600 × 30063467633437613
700 × 30073477633437615
800 × 30083487633437616
900 × 30093497633437618
1000 × 3001034107633437619
400 × 40043447643447614
500 × 40053457643447615
600 × 40063467643447616
700 × 40073477643447617
800 × 40083487643447618
900 × 40093497643447621
1000 × 4001034107643447620
500 × 50053457653457619
600 × 50063467653457620
700 × 50073477653457622
800 × 50083487653457623
900 × 50093497653457625
1000 × 5001034107653457626
600 × 60063467663467619
800 × 60083487663467623
1000 × 6001034107663467627
,
NS (B × H)B₁B₂H₁H₂kg
200 × 1002342801341809
300 × 10033438013418011
400 × 10043448013418012
500 × 10053458013418014
600 × 10063468013418015
200 × 20023428023428014
300 × 20033438023428015
400 × 20043448023428017
500 × 20053458023428018
600 × 20063468023428020
700 × 20073478023428021
800 × 20083488023428023
300 × 30033438033438015
400 × 30043448033438017
500 × 30053458033438018
600 × 30063468033438020
700 × 30073478033438022
800 × 30083488033438024
900 × 30093498033438026
1000 × 3001034108033438029
400 × 40043448043448021
500 × 40053458043448023
600 × 40063468043448024
700 × 40073478043448026
900 × 40093498043448029
1000 × 4001034108043448032
500 × 50053458053458028
600 × 50063468053458030
700 × 50073478053458032
800 × 50083488053435
900 × 50093498053458037
1000 × 5001034108053458039
600 × 60063468063468029
800 × 60083488063468035
1000 × 6001034108063468041

Installation and commissioning

  • Any installation orientation (except units with static effective pressure transducer)
  • With flanges on both ends to make connections to the ducting
  • TVT-D: For constructions with acoustic cladding, ducts on the room side should have cladding up to the acoustic cladding of the controller


Upstream conditions

The volume flow rate accuracy Δqᵥ applies to a straight upstream section of the duct. Bends, junctions or a narrowing or widening of the duct cause turbulence that may affect measurement. Duct connections, e.g. branches off the main duct, must comply with EN 1505. Some installation situations require straight duct sections upstream.



VARYCONTROL control components


AttachmentControlled variableInterfacePressure transducerActuatorManufacturer
Easy controller, dynamic
Easy

qv

0 – 10 Vintegralslow-running

integral
Compact controller, dynamic
BC0

qv

0 – 10 V or 2 – 10 V or MP bus interfaceintegralslow-running

integral

BL0 **

qv

LonWorks FTT 10 interface

integralslow-running

integral
BM0

qv



Modbus RTU/BACnet MS/TP


integralslow-running

integral
BM0-J6

qv



Modbus RTU/BACnet MS/TP with RJ12 socket (for X-AIRCONTROL)


integralslow-running

integral
XB0

qv

0 – 10 V or 2 – 10 Vintegralslow-running

integral
LN0

qv

0 – 10 V or 2 – 10 Vintegralslow-running

integral
LK0

qv



KNX interface


integralslow-running

integral
Compact controller, static
XD0

qv

0 – 10 V or 2 – 10 Vintegralslow-running

integral
XF0Δp0 – 10 V or 2 – 10 Vintegral, control range adjustable 25 - 550 Paslow-running

integral
Universal controller, dynamic

B11 *

qv

0 – 10 V or 2 – 10 Vintegralslow-running

separate

B1B *

qv

0 – 10 V or 2 – 10 Vintegralspring return actuator

separate
BUDN

qv

0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegralslow-running

separate
BUDNF

qv

0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegralspring return actuator

separate
XB4

qv

0 – 10 V or 2 – 10 Vintegralspring return actuator

separate
VARYCONTROL Universal controller, static

BP1 *

qv

0 – 10 V or 2 – 10 V or MP bus interfaceindividual componentslow-running

separate

BPB *

qv

0 – 10 V or 2 – 10 V or MP bus interfaceindividual componentspring return actuator

separate

BPG *

qv

0 – 10 V or 2 – 10 V or MP bus interfaceindividual componentfast-running

separate

BB1 *

qv

2 – 10 Vindividual componentslow-running

separate

BBB *

qv

2 – 10 Vindividual componentspring return actuator

separate

BR1 *

Δp0 – 10 V or 2 – 10 V or MP bus interfaceindividual component

100 Pa
slow-running

separate

BRB *

Δp0 – 10 V or 2 – 10 V or MP bus interfaceindividual component

100 Pa
spring return actuator

separate

BS1 *

Δp0 – 10 V or 2 – 10 V or MP bus interfaceindividual component

600 Pa
slow-running

separate

BSB *

Δp0 – 10 V or 2 – 10 V or MP bus interfaceindividual component

600 Pa
spring return actuator

separate

BG1 *

Δp2 – 10 Vindividual component

100 Pa
slow-running

separate

BGB *

Δp2 – 10 Vindividual component

100 Pa
spring return actuator

separate

BH1 *

Δp2 – 10 Vindividual component

600 Pa
slow-running

separate

BHB *

Δp2 – 10 Vindividual component

600 Pa
spring return actuator

separate
BUSN

qv

0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegralslow-running

separate
BUSNF

qv

0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegralspring return actuator

separate
BUSS

qv

0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegralfast-running

separate
BUPNΔp0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegral

Control range adjustable 25 – 450 Pa
slow-running

separate
BUPNFΔp0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegral

Control range adjustable 25 – 450 Pa
spring return actuator

separate
BURNΔp0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegral

Control range adjustable -50 ... -10 Pa or 10 ... 50 Pa
slow-running

separate
BURNFΔp0 - 10 V or 2 - 10 V or MP bus or Modbus RTU or BACnet MS/TPintegral

Control range adjustable -50 ... -10 Pa or 10 ... 50 Pa
spring return actuator

separate
XD4

qv

0 – 10 V or 2 – 10 Vintegralspring return actuator

separate
XF4Δp0 – 10 V or 2 – 10 Vintegral, control range adjustable 25 - 550 Paspring return actuator

separate

* Control component being phased out
** Control component to be discontinued - do not include in new projects


qv Volume flow rate
Δp Differential pressure
① TROX, ② TROX/Belimo, ③ TROX/Gruner, ⑤ Siemens





Dimension limitation
Type TVT up to max. 700 × 200 mm or 400 × 300 mm with attachment BUSS, BPG * (universal controller fast-running actuator)
Type TVT up to max. 1000 × 300 mm or 800 × 400 mm with attachment BC0, BL0, BM0, BM0-J6, LN0, LK0, XB0 (compact controller)
Type TVT up to max. 1000 × 300 mm or 800 × 400 mm with attachment BUDNF, BUSNF, BUPNF, BURNF, B1B * BPB *, BBB * BRB * BSB *, BGB *, BHB * (spring return TROX/Belimo)
Type TVT up to max. 1000 × 500 mm with attachment XD0, XF0




TROX UNIVERSAL control components


AttachmentControlled variableInterfacePressure transducerActuatorManufacturer
VARYCONTROL Universal controller, static
TUNqv, Δp

TROX Plug&Play communication system and 0 - 10 V or 2 - 10 V or with optional accessories: Modbus, BACnet, web server

qv = integral

Δp = separate
slow-running

separate
TUNFqv, Δp

TROX Plug&Play communication system and 0 - 10 V or 2 - 10 V or with optional accessories: Modbus, BACnet, web server

qv = integral

Δp = separate
spring return actuator

separate
TUSqv, Δp

TROX Plug&Play communication system and 0 - 10 V or 2 - 10 V or with optional accessories: Modbus, BACnet, web server

qv = integral

Δp = separate
fast-running

separate
TUSDqv, Δp

TROX Plug&Play communication system and 0 - 10 V or 2 - 10 V or with optional accessories: Modbus, BACnet, web server

qv = integral

Δp = separate

fast-running with digital communication interface (TROX HPD), separate


qv Volume flow rate
Δp Differential pressure
① TROX



Terminal unit maximum size with some attachments

Type TVT only up to 700 × 200 mm or 400 × 300 mm with attachment TUS

Type TVT only up to 1000 × 500 mm with attachment TUSD










LABCONTROL EASYLAB control components


AttachmentControlled variableInterfacePressure transducerActuatorManufacturer
EASYLAB
ELAB

qv, Δp *

TROX plug and play communication system and 0 - 10 V or 2 - 10 V or with optional accessories: Modbus, BACnet, web server

qv = integral

Δp = separate

fast-running, separate



or



fast-running with digital communication interface (TROX HPD), separate


① TROX



* The controlled variable depends on the type of VAV terminal unit

  • TVR, TVRK: Fume cupboard, room supply air, room extract air, room pressure, single controller
  • TVLK: Fume cupboard, single controller
  • TVJ, TVT: Room supply air, room extract air, room pressure, single controller
  • TVZ, TZ-Silenzio: Room supply air, room pressure, single controller
  • TVA, TA-Silenzio: Room extract air, room pressure, single controller



Terminal unit maximum size with some attachments

Type TVT only up to 700 × 200 mm or 400 × 300 mm with actuator type S (fast-running actuator)

Type TVT only up to 1000 × 500 mm with actuator type SD (fast-running actuator, TROX HPD)


Space requirements

  • SPACE REQUIREMENTS

Space required for commissioning and maintenance

Sufficient space must be kept clear near any attachments to allow for commissioning and maintenance. It may be necessary to provide sufficiently sized inspection access openings.

Product illustrations do not show any installation situation details. If an attachment requires a certain installation orientation, this is specified on a sticker on the product.


Space required


Attachment


Easy controller













Easy


400H300

Compact controller



BC0, BL0, BM0, BM0-J6, LN0, LK0, XB0, XD0, XF0




400


H

300


Universal controller



BUDN, BUDNF, BUSN, BUSNF, BUSS, BUPN, BUPFN, BURN, BURNF, XB4, XD4, XF4, (B11 *, B1B *, BP1 *, BPB *, BPG *, BB1 *, BBB *, BR1 *, BRB *, BRG *, BS1 *, BSB *, BSG *, BG1 *, BGB *, BH1 *, BHB *)




500


H

300


TROX UNIVERSAL



TUN, TUNF, TUS, TUSD




500




H, but at least 350




400


EASYLAB



ELAB




500




H, but at least 350




400



H: Unit height

* Control component being phased out



Downloads

informazioni di prodotto

certificati

manuali d'uso

production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Condividi pagina

Consiglia questa pagina

Consiglia questa pagina inviando un link via e-mail.

I campi contrassegnati con (*) sono obbligatori.

Condividi pagina

Grazie per la tua condivisione!

La tua segnalazione è stata inviata e dovrebbe arrivare a breve.


Contatti

Siamo qui per te

Specifichi il suo messaggio ed il tipo di richiesta
Tel.: +39 029829741 | Fax: +39 0298297460

Attachment (max. 10MB)

I campi contrassegnati con (*) sono obbligatori.

Contatti

Grazie per il tuo messaggio!

Il tuo messaggio è stato inviato e sarà processato a breve.
Il nostro dipartimento per la gestione delle richieste ti contatterà appena possibile.
Per domande di carattere generale riguardanti i nostri prodotti o servizi, è possibile contattare:
Tel.: +39 029829741 | Fax: +39 029829760

Contatti

Siamo qui per te

Specifichi il suo messaggio ed il tipo di richiesta
Tel.: +39 029829741 | Fax: +39 0298297460

Attachment (max. 10MB)

I campi contrassegnati con (*) sono obbligatori.

Contatti

Grazie per il tuo messaggio!

Il tuo messaggio è stato inviato e sarà processato a breve.
Il nostro dipartimento per la gestione delle richieste ti contatterà appena possibile.
Per domande di carattere generale riguardanti i nostri prodotti o servizi, è possibile contattare:
Tel.: +39 029829741 | Fax: +39 029829760
