Serranda tagliafuoco

layer

FKR-EU

Large circular fire damper for the isolation of duct penetrations between fire compartments, available in nine nominal sizes

  • Nominal sizes: 315 – 800 mm
  • For mortar-based installation in solid walls, ceiling slabs and lightweight partition walls
  • Dry mortarless installation into lightweight partition walls
  • Low differential pressure and sound power level
  • Flanges as an option
  • Explosion-proof construction (ATEX) as an option
  • Optional stainless steel casing or powder-coated casing for increased corrosion protection
  • Integration into the central BMS with TROXNETCOM


Optional equipment and accessories

  • Electric actuator 24 V/230 V
  • Release temperature 72/95 °C
  • Duct smoke detectors

per saperne di più

layer

KA-EU

Rectangular fire damper for use in extract air and exhaust air ducts of commercial kitchens. For the isolation of duct penetrations between fire compartments, available in 16 nominal sizes

  • Nominal sizes from 250 × 225 to 1200 × 500 mm
  • 100% free area ensures maximum safety
  • No differential pressure, low sound power level
  • Easy to clean
  • Integration into the central BMS with TROXNETCOM


Optional equipment and accessories

  • Electric blade opening actuator, 230 V
  • Control module

per saperne di più

layer

Type FK-K90 for air transfer application

  • Rectangular fire damper FK-K90 with spring return actuator,
    smoke detector RM-O-3-D and cover grilles on both sides
  • General building inspectorate licence
    Z-6.50-2031
  • Integration into the centralised BMS with TROXNETCOM

per saperne di più

layer

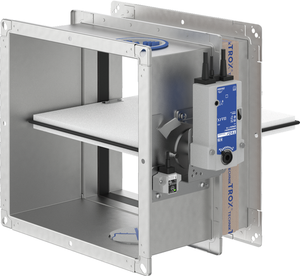

FK-EU

Rectangular fire damper for the isolation of duct penetrations between fire compartments, for a variety of installation situations, available in many different sizes and constructions

  • Nominal sizes 200 × 200 – 1500 × 800 mm, in increments of 1 mm
  • Low differential pressure and sound power level
  • Explosion-proof construction (ATEX) as an option
  • Can also be used as an air transfer damper
  • Optional stainless steel casing or powder-coated casing for increased corrosion protection
  • Integration into the central BMS with TROXNETCOM
  • Universal installation options


Optional equipment and accessories

  • Electric actuator 24 V/230 V
  • Release temperature 72/95 °C
  • Duct smoke detector RM-O-3-D

per saperne di più

layer

KU-K30

Square fire damper for installation in suspended fire-resistant F30 ceilings For the isolation of duct penetrations between fire compartments, available in five nominal nominal sizes

  • Nominal sizes for diffusers sized 300 × 300 – 625 × 625 mm
  • Satisfies high ventilation requirements when combined with a diffuser
  • Coated construction meets high hygiene requirements
  • Integration into the central BMS with TROXNETCOM


Optional equipment and accessories

  • Ceiling diffusers/swirl diffusers
  • External fusible link, 72 °C
  • Electric actuator
  • Release temperature 72/95 °C

per saperne di più

layer

FKRS-EU

Small circular fire damper for the isolation of duct penetrations between fire compartments, available in ten nominal sizes

  • Nominal sizes: 100 – 315 mm
  • Low differential pressure and sound power level
  • Optional stainless steel casing or powder-coated casing for increased corrosion protection
  • Can also be used as an air transfer unit
  • Integration into the central BMS with TROXNETCOM
  • Universal installation options


Optional equipment and accessories

  • Electric actuator 24 V/230 V
  • Release temperature 72/95 °C
  • Duct smoke detector RM-O-3-D

per saperne di più

layer

FKS-EU

Small rectangular fire damper for the isolation of duct penetrations between fire compartments, available in many sizes

  • Nominal sizes 200 × 100 to 800 × 200 mm
  • Low differential pressure and sound power level
  • Optional stainless steel casing or powder-coated casing for increased corrosion protection
  • Can also be used as an air transfer damper or air transfer unit
  • Integration into the central BMS with TROXNETCOM
  • Universal installation options


Optional equipment and accessories

  • Electric actuator 24 V/230 V
  • Release temperature 72/95 °C
  • Duct smoke detectors

per saperne di più

layer

FV-EU

Circular fire protection valve for the isolation of duct penetrations between fire compartments; suitable for supply air and extract air systems. They also satisfy ventilation requirements

  • Nominal sizes Ø 100, 125, 160, 200 mm
  • For installation in walls and ceilings
  • Low differential pressure and sound power level
  • Integration into the central BMS with TROXNETCOM


Optional equipment and accessories

  • Electric limit switch
  • Extension piece
  • Trim ring, circular or square

per saperne di più
