Unità terminali VAV

Product Finder

layer

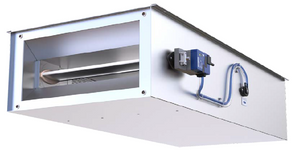

TA-Silenzio

Rectangular VAV terminal units for the extract air control in buildings with variable air volume systems, demanding acoustic requirements and low airflow velocities

  • Highly effective integral attenuator
  • Optimised for airflow velocities of 0.7 – 7 m/s
  • High control accuracy, even in case of unfavourable upstream conditions
  • Compact construction with rectangular connections on both ends
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • Closed blade air leakage to EN 1751, up to class 4
  • Casing leakage to EN 1751, class C



Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TS for the reduction of air-regenerated noise









per saperne di più

layer

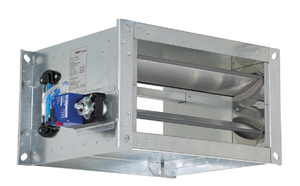

TVT




Rectangular air terminal units for standard applications in supply air or extract air systems with variable volume flow rates, suitable for low-leakage shut-off

  • For volume flow rate ranges up to 28836 m³/h or 8010 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, up to class C







Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow








per saperne di più

layer

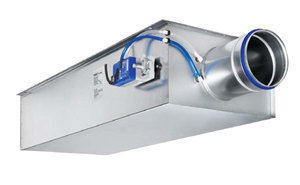

TVA

VAV terminal units for extract air control in buildings with variable air volume systems and demanding acoustic requirements

  • Highly effective integral attenuator
  • Box style construction for the reduction of the airflow velocity
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • Closed blade air leakage to EN 1751, up to class 4
  • Casing air leakage to EN 1751, up to class C



Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TS for the reduction of air-regenerated noise









per saperne di più

layer

TVRK




Plastic circular VAV terminal units for aggressive extract air in variable air volume systems

  • Casing and damper blade made of flame-resistant polypropylene
  • Slide-out effective pressuresensor allows for easy cleaning
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Universal and LABCONTROL)
  • Suitable for airflow velocities up to 13 m/s
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class B







Optional equipment and accessories

  • With flanges on both ends
  • Matching flanges for both ends
  • Plastic secondary silencer Type CAK for the reduction of air-regenerated noise








per saperne di più

layer

TVM




VAV dual duct terminal units for dual duct systems with variable volume flows in buildings with demanding acoustic requirements

  • Individual temperature control for each room or zone
  • Highly effective integral attenuator
  • Electronic control components for various applications
  • Closed blade air leakage to EN 1751, up to class 4
  • Casing leakage to EN 1751, Class B





Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TS for the reduction of air-regenerated noise








per saperne di più

layer

TVLK

Plastic circular VAV terminal units for aggressive extract air in laboratories and production facilities

  • Casing and damper blade made of flame-resistant polypropylene
  • Compact construction, only 400 mm long
  • High control accuracy even in case of unfavourable upstream conditions
  • Combination with fast-running actuators (air management systems)
  • Volume flow rate measurement with bluff body or nozzle
  • Slide-out sensor tubes allow for easy cleaning
  • Closed blade air leakage to EN 1751, class 4
  • Casing air leakage to EN 1751, class C



 Optional equipment and accessories

  • With flanges on both ends
  • Plastic secondary silencer Type CAK for the reduction of air-regenerated noise








per saperne di più

layer

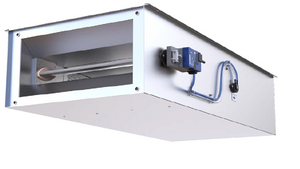

TZ-Silenzio




Rectangular VAV terminal units for the supply air control in buildings with variable air volume systems, demanding acoustic requirements and low airflow velocities

  • Highly effective integral attenuator
  • Optimised for airflow velocities of 0.7 – approx. 7 m/s
  • High control accuracy, even in case of unfavourable upstream conditions
  • Compact construction with rectangular connections on both ends
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • Closed blade air leakage to EN 1751, Class 4
  • Casing leakage to EN 1751, Class C


Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TS for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow









per saperne di più

layer

TVJ




Rectangular air terminal units for standard applications in supply air or extract air systems with variable volume flow rates

  • Suitable for volume flow rate ranges up to approx. 62,000 m³/h or 17,000 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Closed blade air leakage to EN 1751, Class 1 (B + H ≥ 600 mm)
  • Casing air leakage to EN 1751, class B







Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger Type WT for reheating the airflow








per saperne di più

Bitte wählen Sie ihre gewünschten Produkteigenschaften:
For extract air systems with demanding acoustic requirements and low airflow velocities TA-Silenzio

TA-Silenzio

For extract air systems with demanding acoustic requirements and low airflow velocities

per saperne di più

For normal and high volume flow rate ranges and low-leakage shut-off TVT

TVT

For normal and high volume flow rate ranges and low-leakage shut-off

per saperne di più

For extract air systems with demanding acoustic requirements TVA

TVA

For extract air systems with demanding acoustic requirements

per saperne di più

For contaminated air TVRK

TVRK

For contaminated air

per saperne di più

For dual duct systems TVM

TVM

For dual duct systems

per saperne di più

Optimised for use in laboratories and on fume cupboards TVLK

TVLK

Optimised for use in laboratories and on fume cupboards

per saperne di più

For supply air systems with demanding acoustic requirements and low airflow velocities TZ-Silenzio

TZ-Silenzio

For supply air systems with demanding acoustic requirements and low airflow velocities

per saperne di più

For normal and high volume flow rate ranges TVJ

TVJ

For normal and high volume flow rate ranges

per saperne di più

For the most diverse applications regarding standard volume flow rate ranges TVR

TVR

For the most diverse applications regarding standard volume flow rate ranges

per saperne di più

For supply air systems with demanding acoustic requirements TVZ

TVZ

For supply air systems with demanding acoustic requirements

per saperne di più

For the control of variable air volume flows in potentially explosive atmospheres (ATEX) TVR-Ex

TVR-Ex

For the control of variable air volume flows in potentially explosive atmospheres (ATEX)

per saperne di più
